Description
A tumbler lid can look simple from the outside while relying on a precisely compressed gasket to keep the closure tight. This custom silicone gasket is intended for lid grooves, bottle-cap interfaces and removable sealing positions where elastic recovery and dimensional consistency matter.
For drinkware programs, the gasket should be designed together with the groove rather than treated as a generic O-ring. Cross-section, compression, hardness and mating-surface geometry determine how easily the lid closes and how consistently it seals after repeated opening, washing and reassembly.
Seal Geometry for Reusable Drinkware

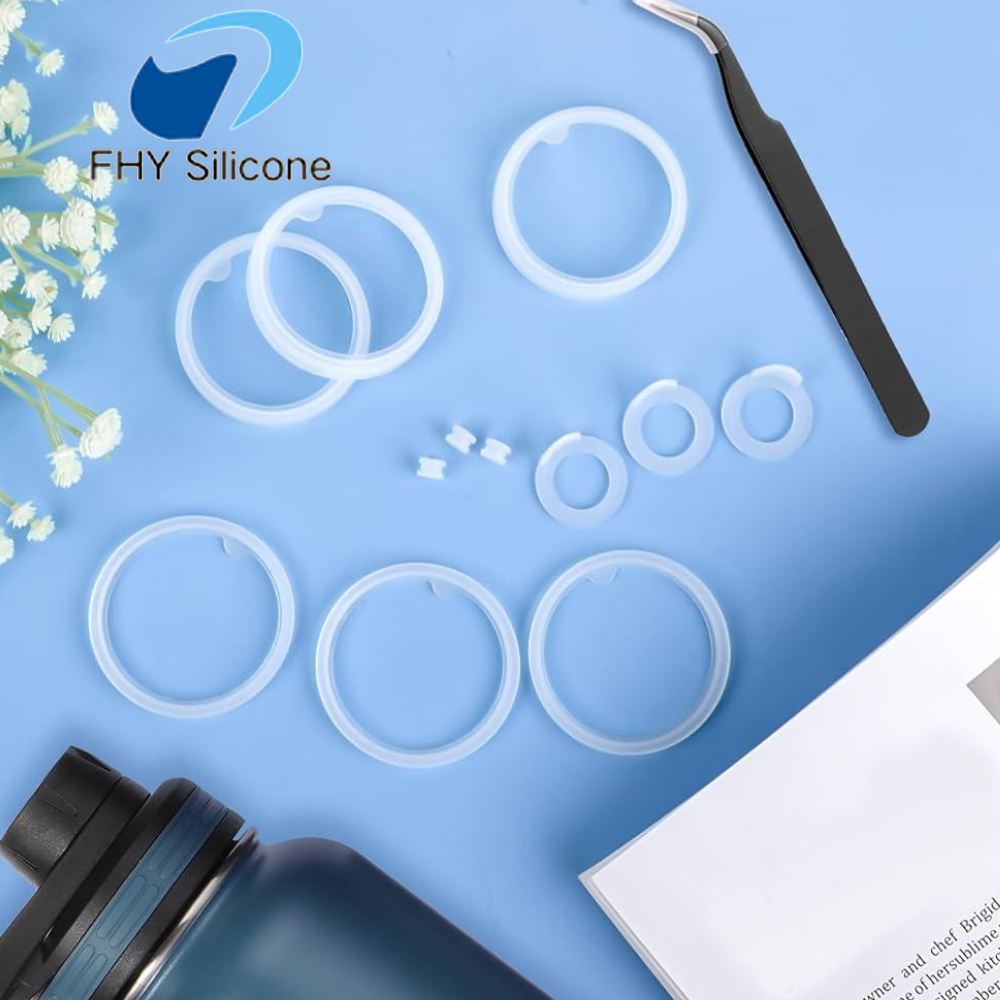

- O-ring, square-ring and custom gasket profiles can be produced to match the lid groove.
- Source material options include food-, medical- and industrial-grade silicone rubber.
- Hardness is listed as customizable from 20A to 80A, allowing the compression feel to be tuned to the closure design.
- The original specification lists a -40°C to 200°C temperature range for the silicone material.
- Compression or injection molding can be selected according to geometry and production requirements.
Source-Based Technical Options
| Material | Silicone Rubber (Food / Medical / Industrial Grade) |
|---|---|
| Hardness Range | 20A – 80A (customizable) |
| Temperature Range | -40°C to 200°C |
| Color | Transparent / Black / Custom Colors |
| Shape | O-ring, square ring, custom gasket |
| Process | Compression / Injection Molding |
| Certification | FDA / LFGB / ISO 10993 (optional) |
Typical Tumbler Applications

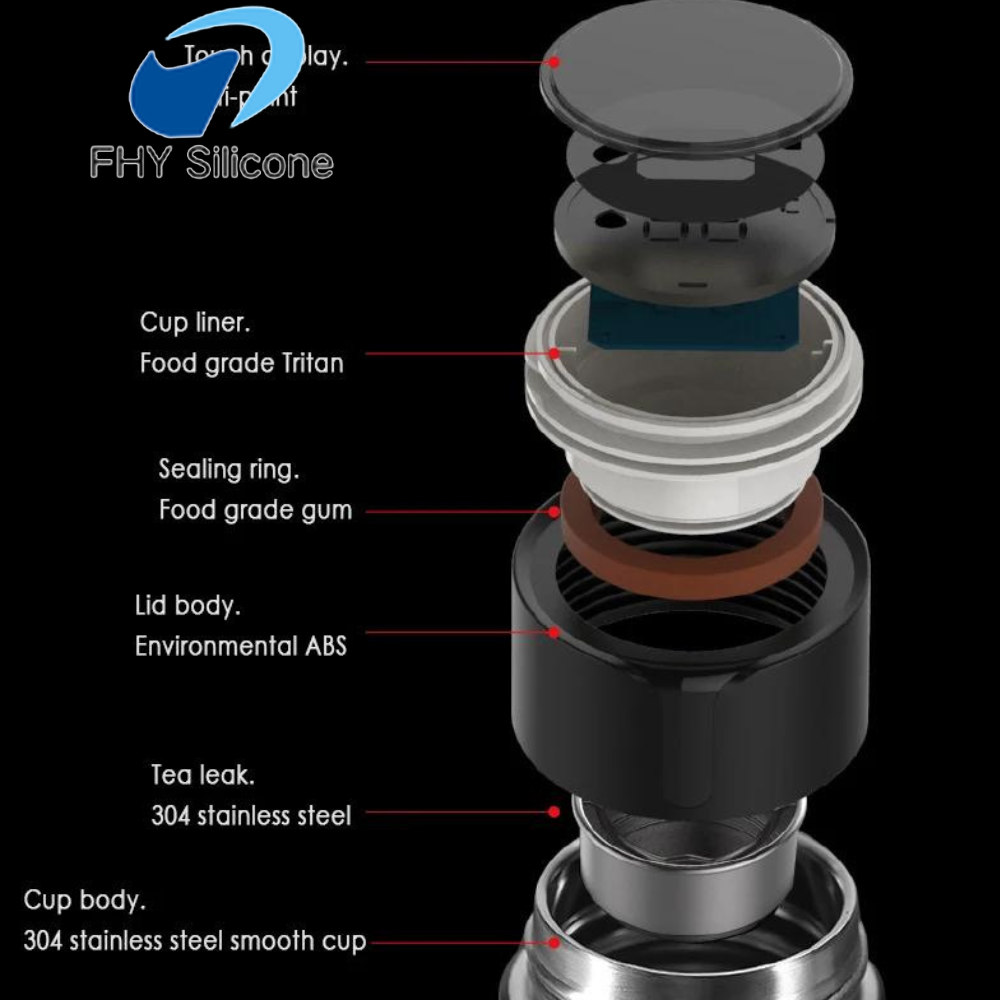

- Insulated tumbler lids

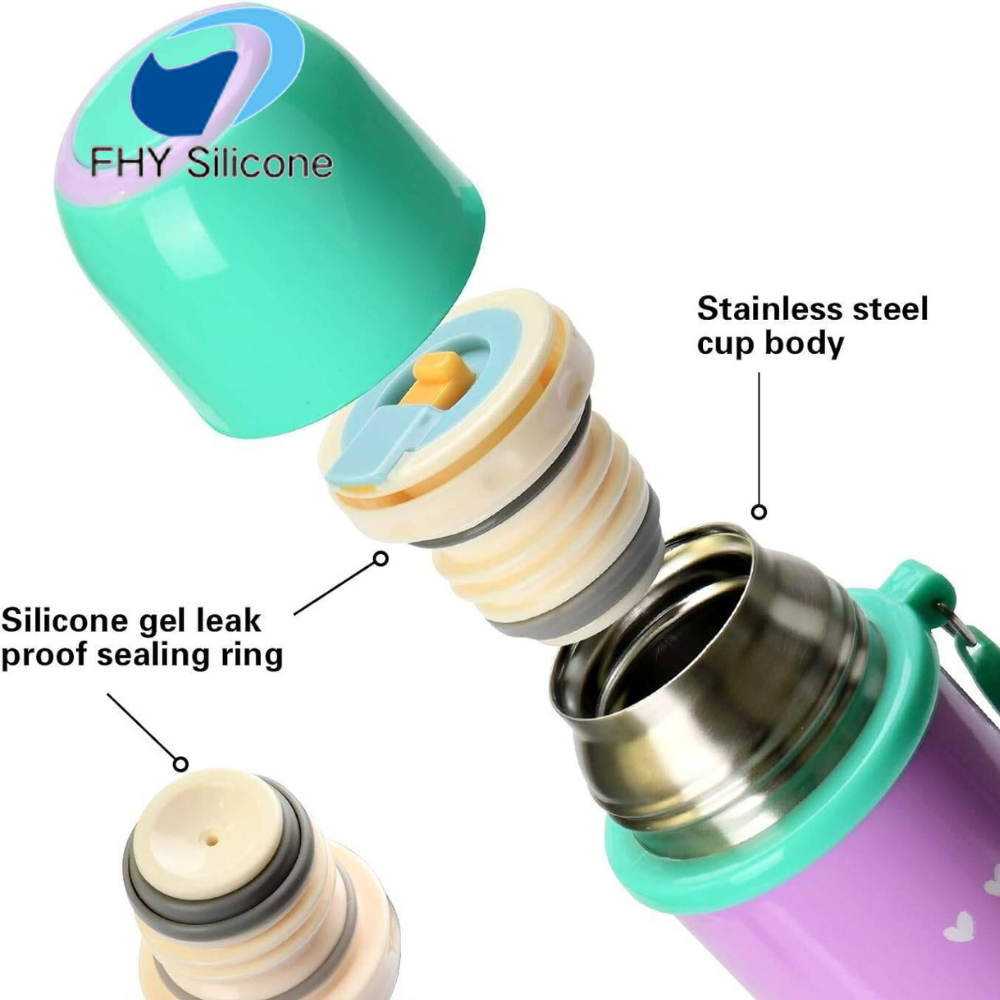

- Vacuum bottle caps

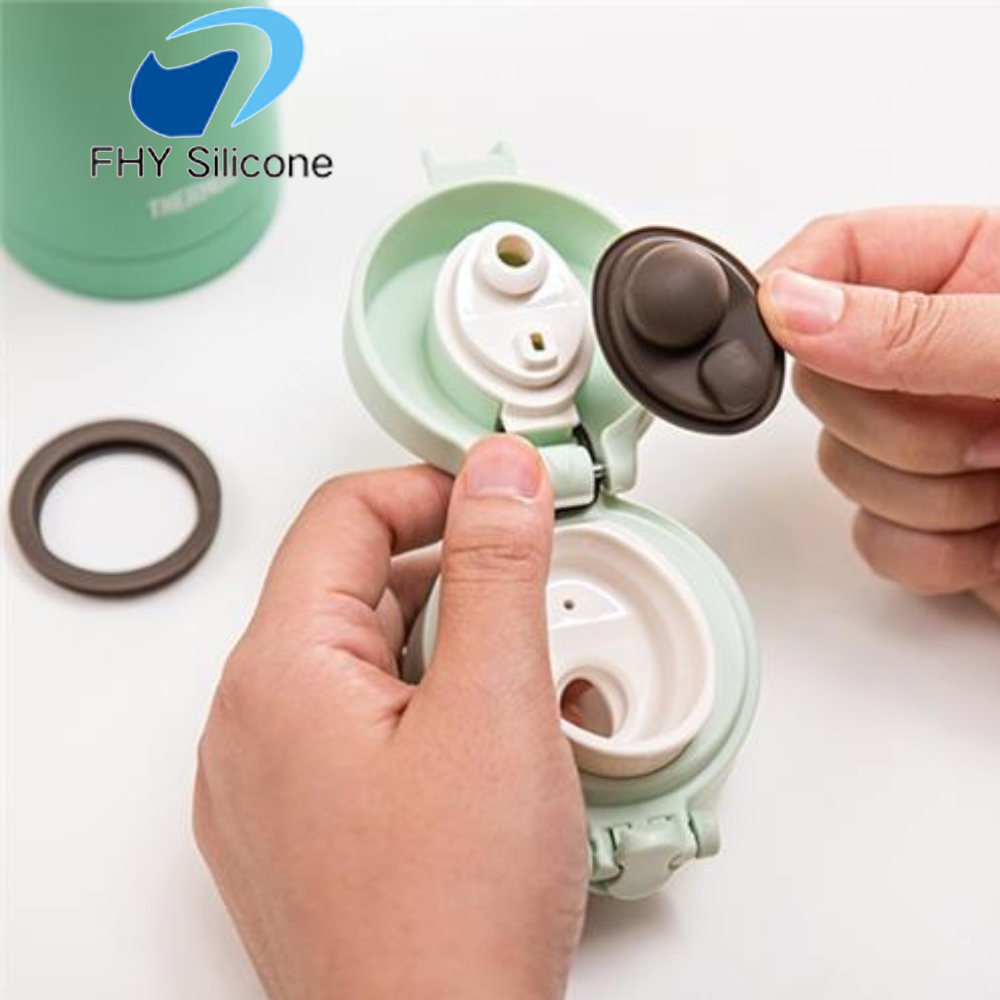

- Travel mug closures
- Reusable water bottle lids
- Custom drinkware sealing systems
What to Define Before Tooling
For a reliable quotation and mold review, the silicone part should be specified together with the mating lid or cup geometry. The most useful project inputs are:

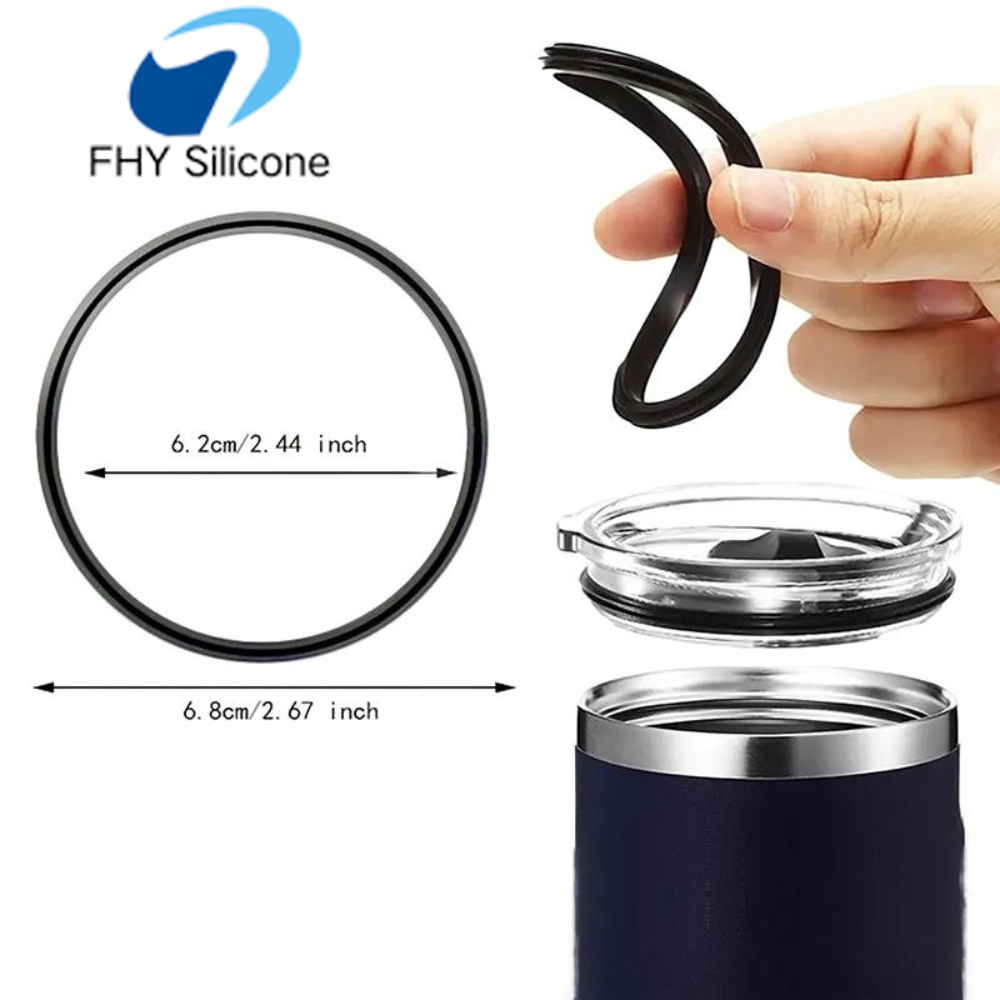

- Inside and outside diameter
- Cross-section shape and thickness
- Target compression in the lid groove
- Hardness and color
- Food-contact compliance requirement for the destination market
RFQ and Sample Review
If you already have a lid drawing or an existing gasket sample, send the assembled dimensions as well as the seal groove details. We can use those inputs to review moldability and define a sample-confirmation plan before volume production.
